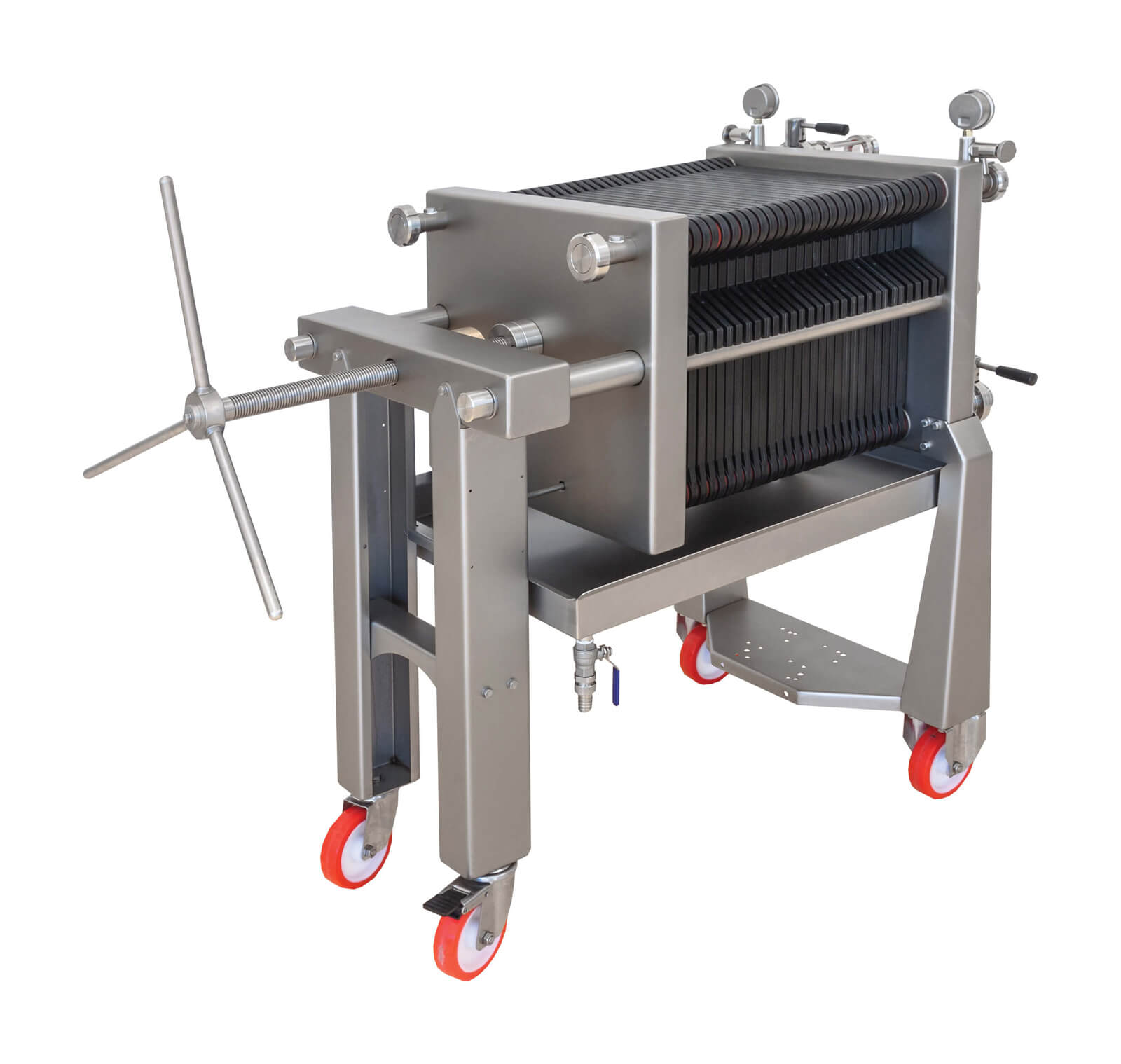

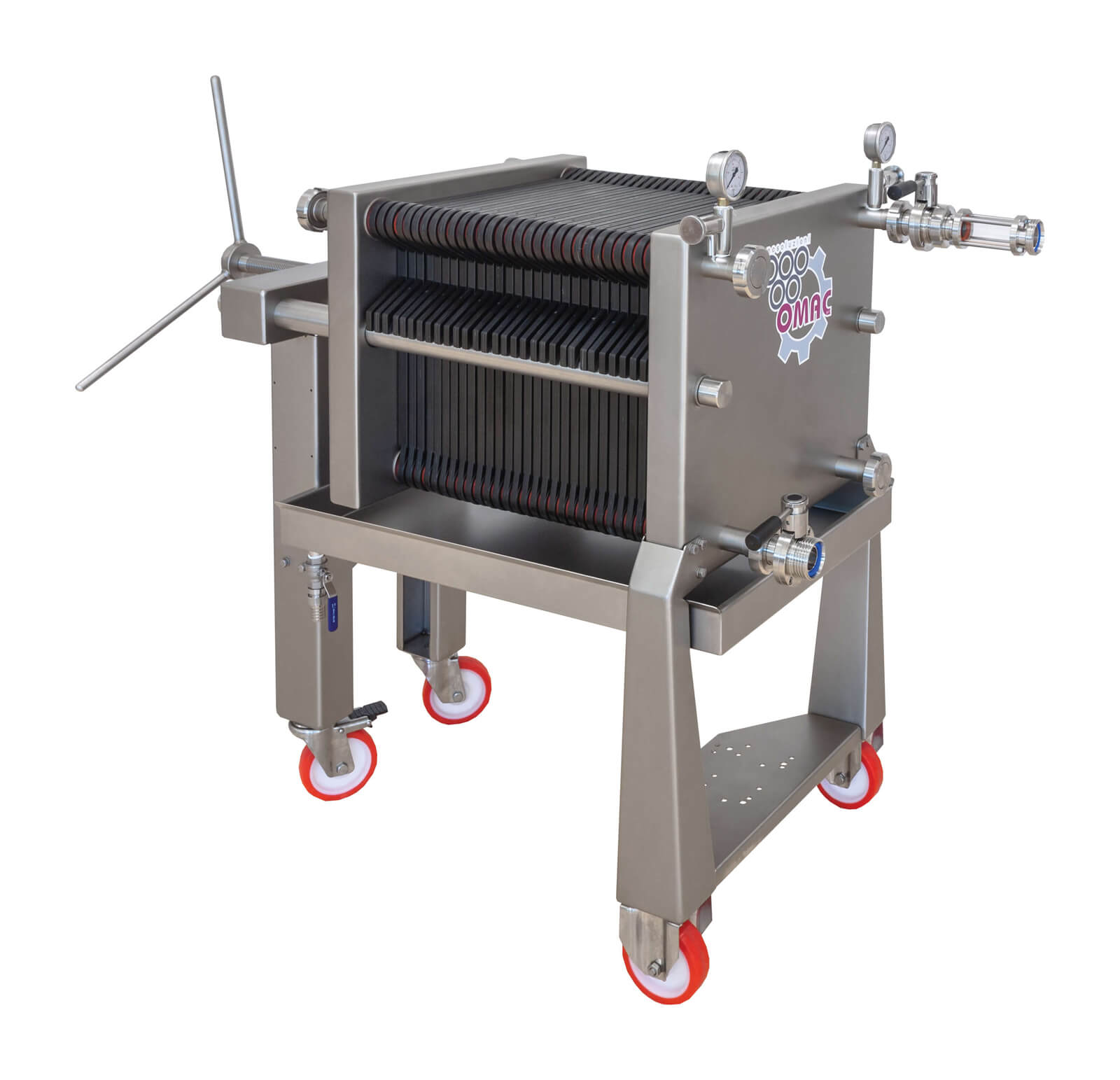

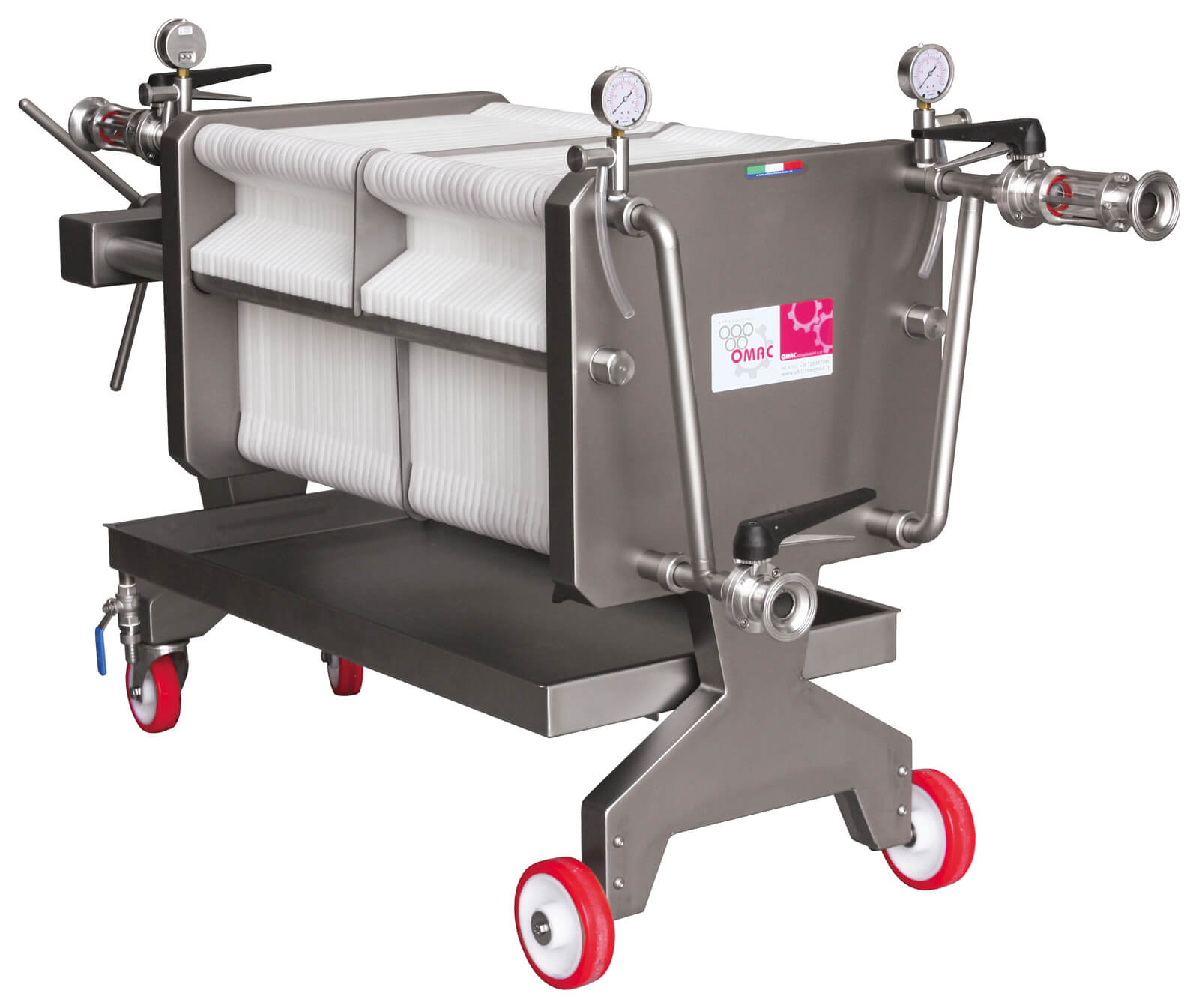

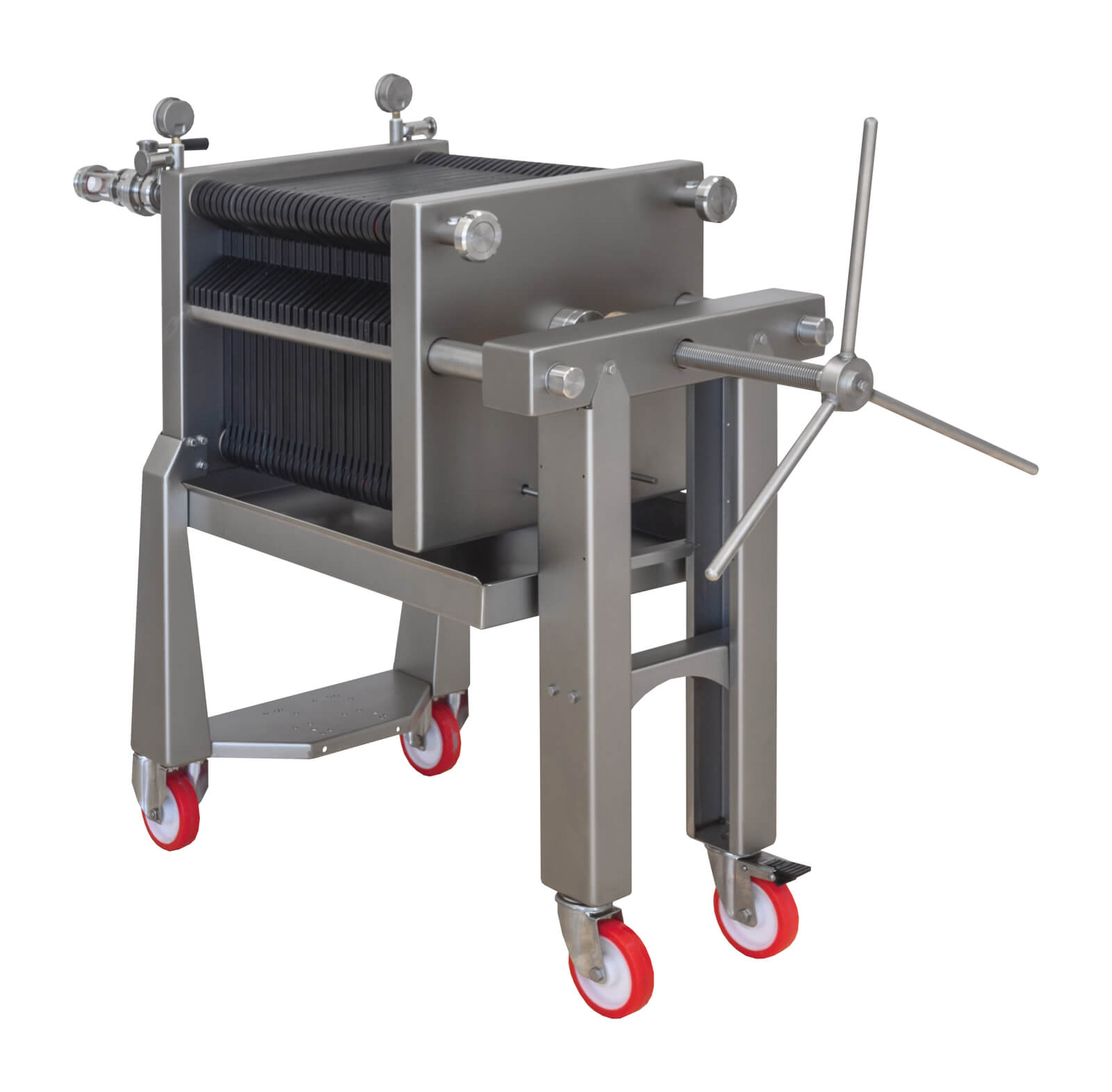

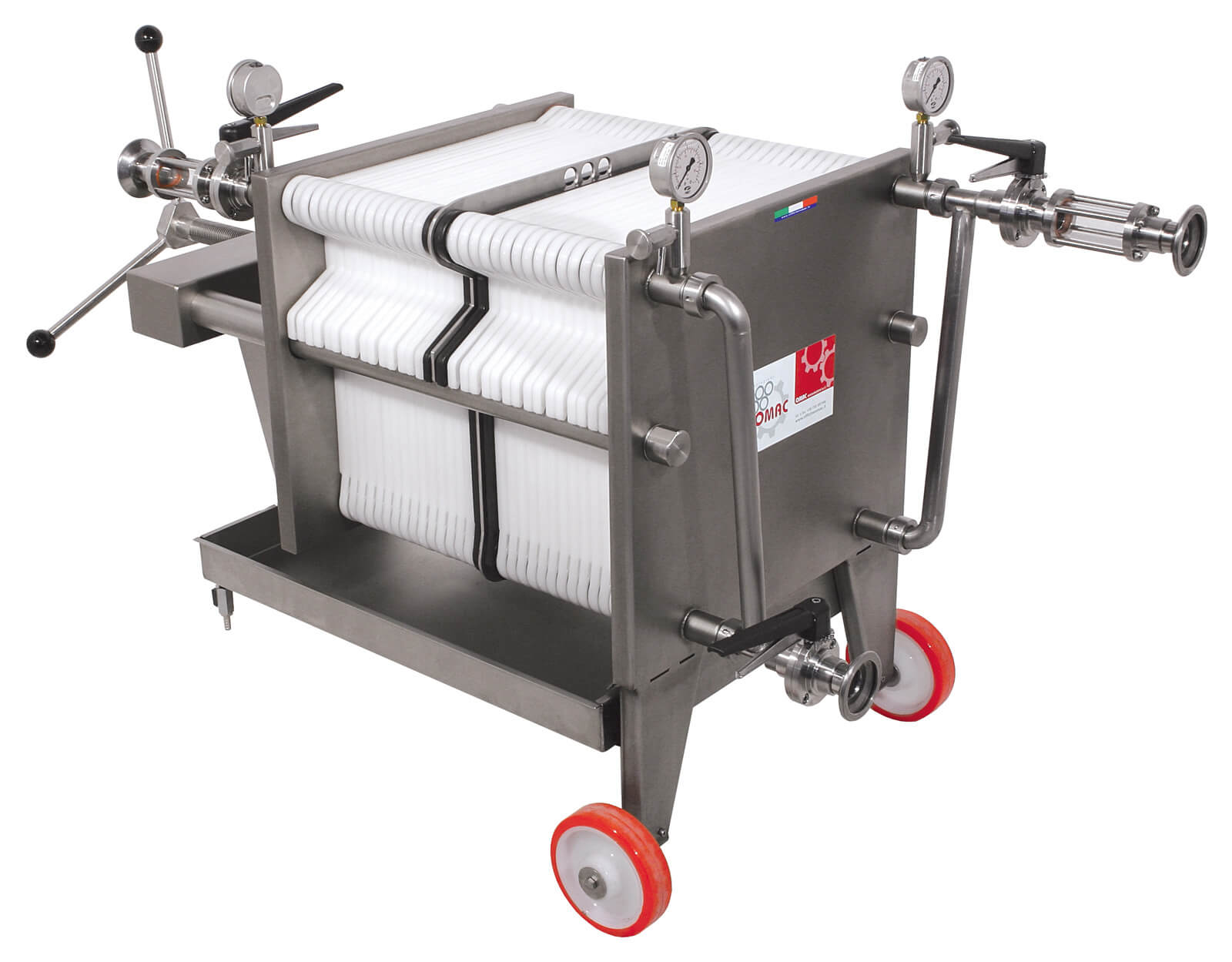

 They are specifically designed to meet demands of small and middle wine industries. They are made of stainless steel and they are usefull and safe. According to the type of filtering layers, white and red wine, spankling wine, olive oil, vinegar, product of herbalist, liquors, and other items can be refined, clarified, sterilized.
Our variety of filters has filtering capacity from 1.200 to 5.000 liters per hour. Centrifugal electric pumps in stainless steel are mounted for all uses. Only to filter olive oil, monoscrew pumps or impeller pumps will be mounted.

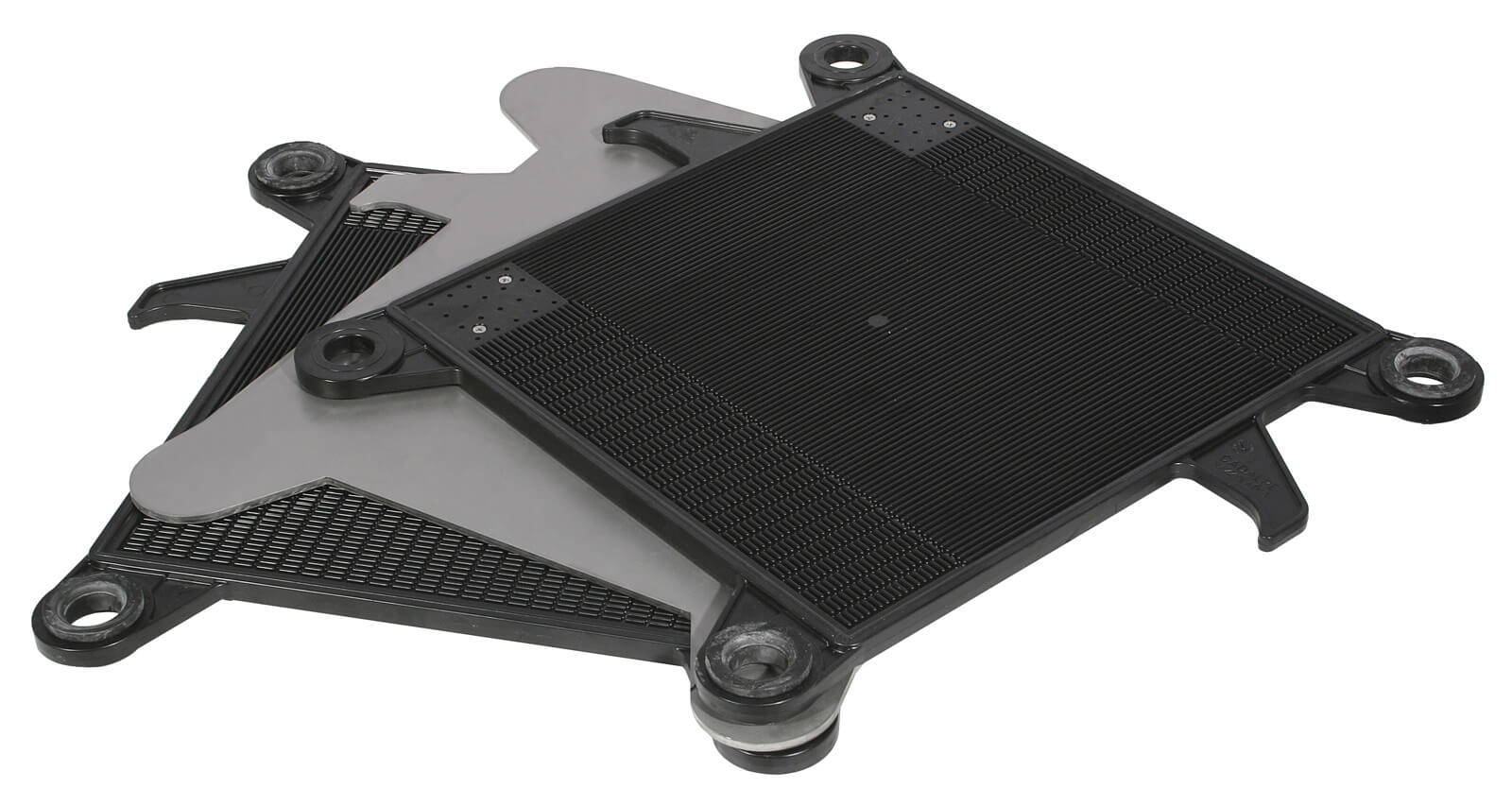

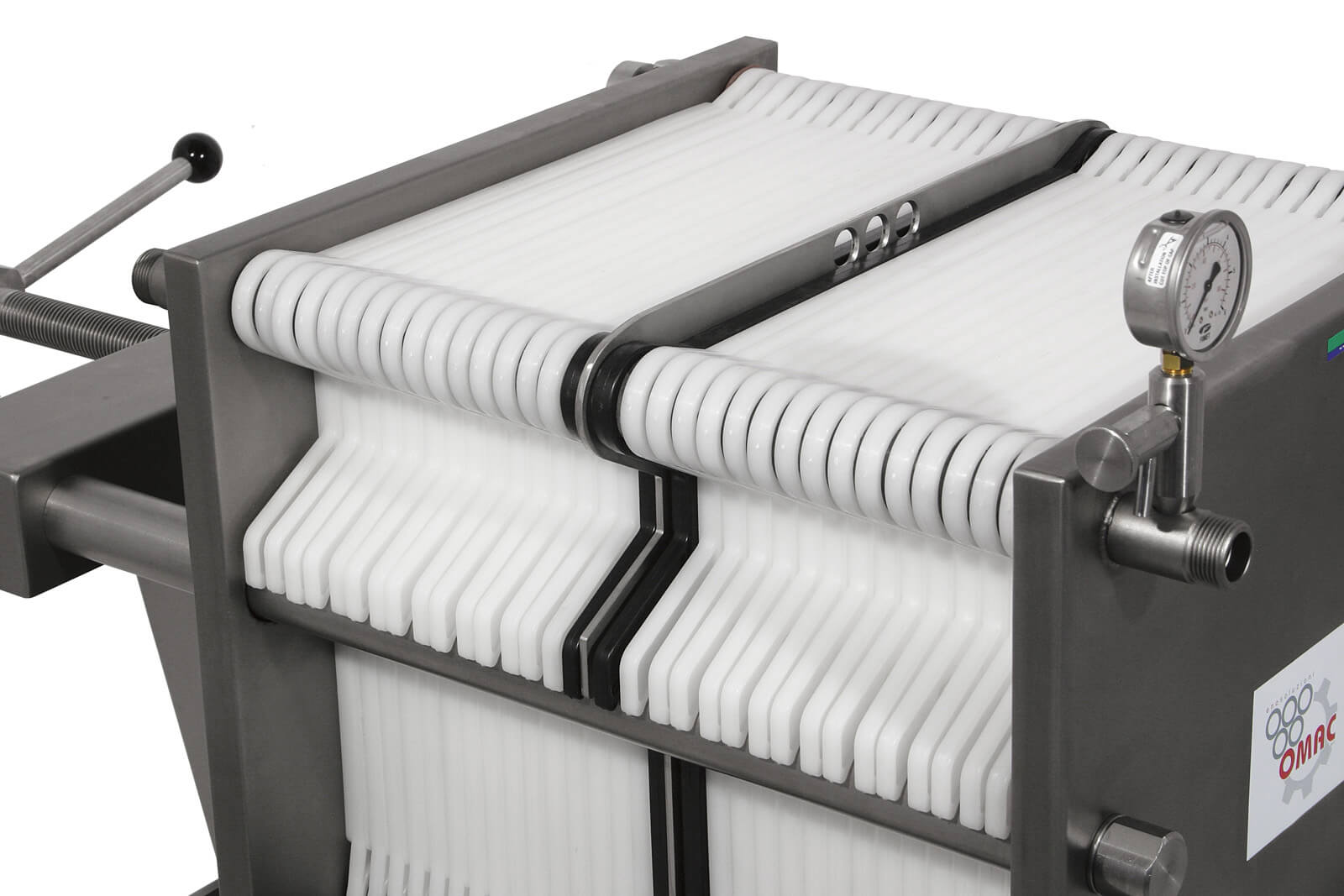

The 40x40 plates are made of plastic suitables for contact with food, or of NORIL by request, sterilizable at 120°C.
| | plate filter |
 | Code | Type | Filtering surface (sqm) | Cartons dimension (cm) | Wine production (l/h) | Oil production (l/h) | Dimensions (mm) | Weight (kg) | 5031
5032
5033
5034
5035 | SIRIO 10
SIRIO 20
SIRIO 30
SIRIO 40
SIRIO 50 | 1,60
3,20
4,80
6,40
8,00 | 40x40
40x40
40x40
40x40
40x40 | 1.200
2.000
3.000
4.000
5.000 | 500
600
700
800
900 | 1.000x600x900
1.000x600x900
1.250x600x900
1.500x600x900
1.750x600x900 | 240
250
280
375
395 |
|
